Rain/Light Recognition Sensor -G397-, REPLACING: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

There is a risk of damaging the humidity sensor through improper handling.

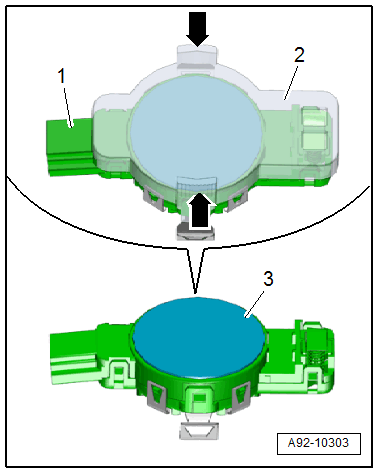

-- Gently press the grip surfaces -arrows- on the protective cap -2- together and remove from the sensor -1-.

Fig 1: Identifying Protective Cap

Courtesy of AUDI

TIP:

To avoid contaminating the silicone pad, remove the protective cap just before installing it.

-- Insert the sensor -4- into the mount -2-.

Fig 2: Identifying Rain/Light Recognition Sensor

Courtesy of AUDI

The Rain/Light Recognition Sensor -G397- must not have any embedded objects or bubbles between it and the windshield so that it functions correctly.

-- Press on the clips -1 and 5- until they audibly engage.

-- Connect the connector -3-.

-- After replacing the rain/light recognition sensor it must be coded using the Vehicle Diagnostic Tester.
