Rain/Light Recognition Sensor -G397-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Screwdriver

Courtesy of AUDI

-- Switch off the ignition and place the ignition key outside of the vehicle.

-- Remove the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Disconnect the connector -3-.

-- Insert a narrow screwdriver -5- into the opening as shown and release the retainers on the spring -2- in the direction of -arrows-.

-- Wait one minute so that the silicone pad can be removed without leaving any residue.

-- Loosen the Rain/Light Recognition Sensor -G397- -4- by moving it back and forth and remove it from the mount -1-.

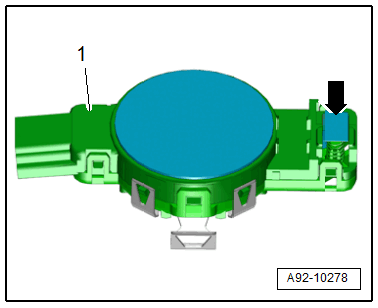

Fig 2: Locating Rain/Light Recognition Sensor

Courtesy of AUDI

CAUTION:

There is a risk of damaging the humidity sensor through improper handling.

- Remove and install the rain/light recognition sensor very carefully.

-- If the humidity sensor -arrow- is damaged, then the rain/light recognition sensor must be replaced.

-- Clean the adhesive surface on the windshield with Cleaning Solution:D 009 401 04 .

Any silicone residue must be completely removed.
