Washer Nozzles, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of AUDI
|

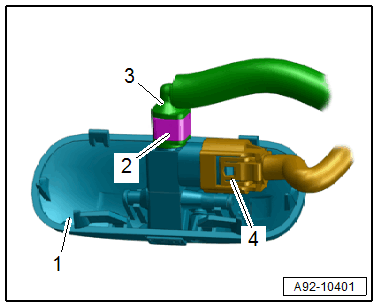

-- Press the washer nozzle -1- in the direction of -arrow A- and unclip it from the hood in the direction of -arrow B-.
-- Release the clamp -2- and remove the washer fluid hose -3- from the washer nozzle -1- for the windshield washer system.
 Courtesy of AUDI
|
-- Disconnect the connector -4- if equipped.
