Washer Fluid Reservoir, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Front wheel removed. Refer to WHEELS AND TIRES .
-- Remove the right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

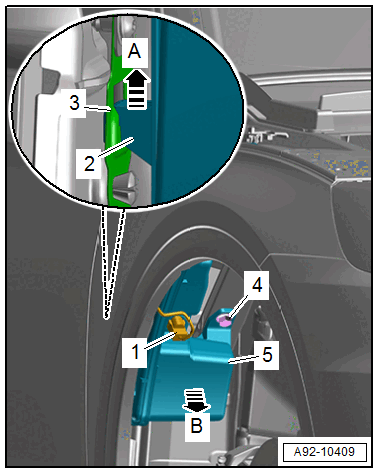

-- Disconnect the connector -1-.
-- Remove the bolt -4-.
-- Lift the washer fluid reservoir -5- in the direction of -arrow A- and at the same time move it forward in the direction of -arrow B-. The bracket -2- is disengaged from the mount -3- while doing so.

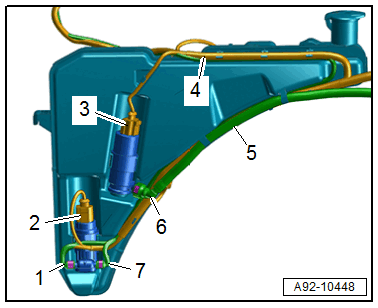

-- Disconnect the connectors -2 and 3-.
-- Place a drip tray under the washer fluid reservoir.
-- Remove the washer fluid hose -1 and 7- from the windshield washer pump.
-- Remove the washer fluid hose -6- from the headlamp washer system pump.
-- Free up the washer fluid hose -5- and the wiring harness -4-.
-- Remove the windshield washer fluid reservoir.
