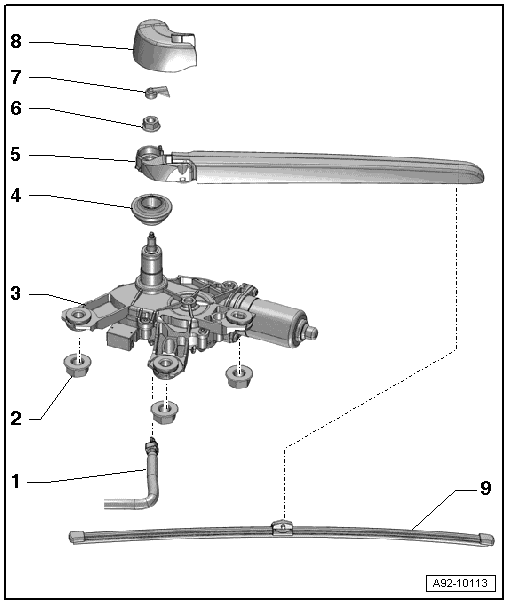

Overview - Rear Window Wiper System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Hose
- For the rear window washer system
- Nut
- 8 Nm
- Rear Window Wiper Motor -V12-
- Removing and Installing. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Removing and Installing. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
- Windshield Wiper Arm
- Removing and Installing. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Nut
- 12 Nm
- Washer Nozzle
- Rear Window Wiper Cap
- Wiper Blade
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
