Washer Nozzles, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the cover for the headlamp washer system spray nozzle. Refer to OVERVIEW - BUMPER COVER .
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Versions with auxiliary radiator: remove the auxiliary radiator and move it aside with the coolant hoses attached. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING - 2.0L , AUXILIARY RADIATOR, REMOVING AND INSTALLING - 3.0L .

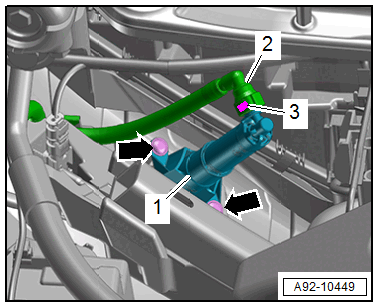

-- Remove the bolts -arrows-.
-- Place the drip tray under the washer nozzle.
-- Remove the washer nozzle -1-.
-- Remove the washer fluid hose -2- by pressing the release buttons -3-.
-- Seal the hose coupling with clean plugs from the Engine Bung Set:VAS 6122 .
