Headlamp Washer System Pump -V11-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

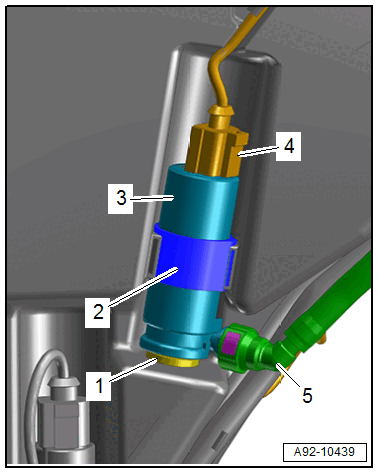

-- Remove the washer fluid reservoir until the windshield washer pump is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Disconnect the connector -4-.
-- Remove the washer fluid hose -5- by pressing the release buttons.
-- Remove the headlamp washer system pump -3- from the washer fluid reservoir.
