Expansion Valve, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- For all following procedures immediately seal all the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .
-- Disconnect the refrigerant lines -B and C- from the front expansion valve -D- and put aside (do not remove). Refer to REFRIGERANT LINES, REMOVING AND INSTALLING FROM EXPANSION VALVE .

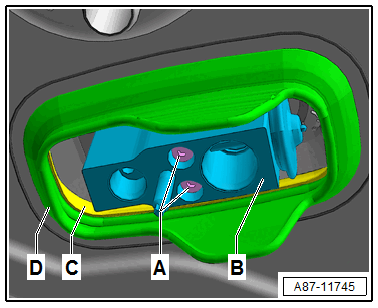

-- Remove the bolts -A-.
-- Disconnect the expansion valve -B- from the refrigerant lines to the evaporator.
