Overview - Heat Pump Valve Unit: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

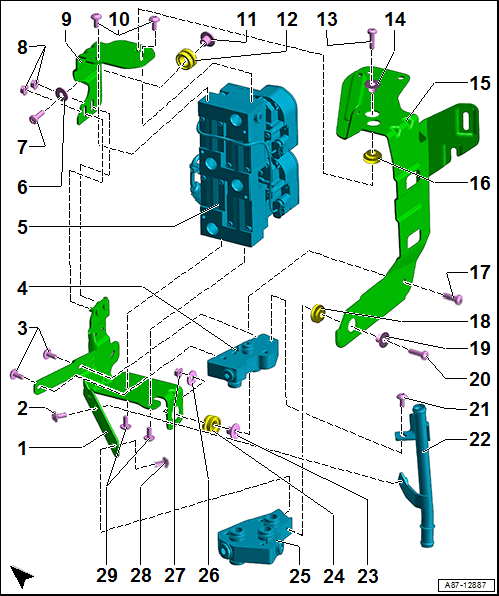

Fig 1: Exploded View Of Heat Pump Valve Unit
GWWA87-12887Courtesy of AUDI
  1. Bracket
  2. Screw
    • 8 Nm
  3. Bolts
    • 8 Nm
  4. Base Plate
  5. Valve Unit with Wiring Harness
    • Label the wiring harness routing before removing
    • Pay attention to the correct connector assignment for the wiring harness connectors to the valves in the valve unit. Refer to Connection Diagram Wiring Harness on the Valve Unit .
    • The valve unit valves are currently identical in construction. They are assigned through the connector assignment for the wiring harness connectors and are activated accordingly by the Thermal Management Control Module -J1024-. Refer to the appropriate Wiring Diagram.
    • Disassembling and Assembling. Refer to HEAT PUMP VALVE UNIT, DISASSEMBLING AND ASSEMBLING .
  6. Washer
  7. Screw
    • 8 Nm
  8. Nuts
    • 10 Nm
  9. Bracket
  10. Screw
    • 8 Nm
  11. Guide Sleeves
  12. Rubber Grommet
  13. Screw
  14. Guide Sleeves
  15. Bracket
  16. Rubber Bushing
  17. Screw
    • 10 Nm
  18. Rubber Bushing
  19. Guide Sleeve
  20. Screw
    • 8 Nm
  21. Screw
    • 8 Nm
  22. Coolant Pipe
  23. Guide Sleeve
  24. Rubber Grommet
  25. Base Plate
  26. Washer
  27. Nut
    • 10 Nm
  28. Screw
  29. Screw
    • 8 Nm
