Component Location Overview - Components Inside Rear Passenger Compartment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

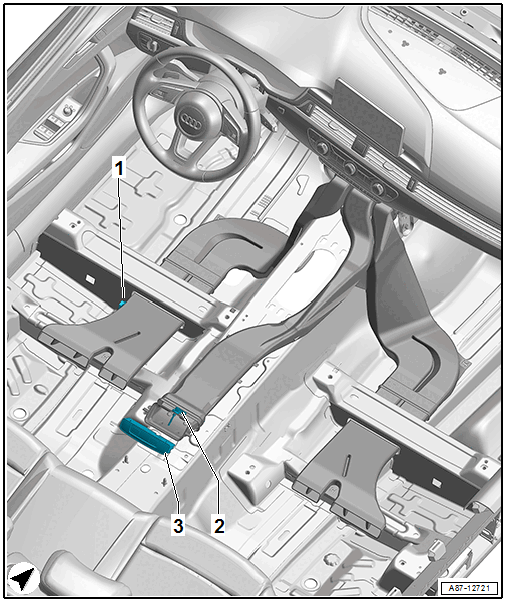

- The illustration shows and A4, on the Q5 the component locations are slightly different.
- Left Rear Footwell Vent Temperature Sensor -G637-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- Removing and Installing. Refer to Left Rear Footwell Vent Temperature Sensor -G637-, REMOVING AND INSTALLING .
- Rear Upper Body Vent Temperature Sensor -G537-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- Removing and Installing. Refer to Rear Upper Body Vent Temperature Sensor -G537-, REMOVING AND INSTALLING .
- Rear A/C Display Control Head -E265-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- Removing and Installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
- There are different versions. Refer to the appropriate Parts Information.
