Component Location Overview - Components In Front Vehicle Interior
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

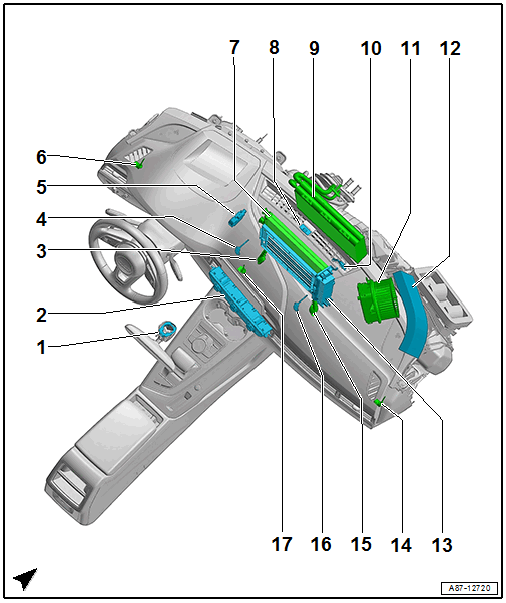

- Humidity Sensor -G355- / Sunlight Photo Sensor -G107-
- There are different versions. Refer to the appropriate Electronic Parts Information.
- The Humidity Sensor -G355- and Sunlight Photo Sensor -G107- are (depending on vehicle equipment) integrated in the Rain/Light Recognition Sensor -G397-. If faulty, these cannot be replaced separately. Replacing. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .
- Depending on the model, the Sunlight Photo Sensor -G107- may also be installed in the defroster vent -Item 8- COMPONENT LOCATION OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR.
- Front A/C Display Control Head -E87-
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Removing and installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
- Left Condensation Water Drain
- Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Check using the Vehicle Diagnostic Tester CONDENSATION WATER DRAIN, CHECKING .
- Left Footwell Vent Temperature Sensor -G261-
- Removing and Installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
- Actuator
- Example for all adjustment motors
- Overview - Adjustment Motors. Refer to COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS .
- Left Front Upper Body Vent Temperature Sensor -G385-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- Removing and Installing. Refer to Left Front Upper Body Vent Temperature Sensor -G385-, REMOVING AND INSTALLING, "High" A/C SYSTEM .
- On a vehicle with a "Low" A/C system (or no A/C system) the Left Front Upper Body Vent Temperature Sensor -G385- is not installed The opening in the air duct is closed with a plug.
- On a vehicle with a "Low" A/C system (or without an A/C system) the Left Front Upper Body Vent Temperature Sensor -G385- is installed in the air duct to the center instrument panel vent. Refer to -Item 17- COMPONENT LOCATION OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR.
- Heater Core
- Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Sunlight Photo Sensor -G107-
- Removing and Installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING or Humidity Sensor -G355-, Rain/Light Recognition Sensor -G397-, AND Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
- Depending on the version, the Sunlight Photo Sensor -G107- may also be integrated in the Rain/Light Recognition Sensor -G397- -Item 1- COMPONENT LOCATION OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR.
- Evaporator
- Removing and Installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
- Evaporator Vent Temperature Sensor -G263-
- Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
- RHD: is a mirror image
- Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to Fresh Air Blower -V2- WITH Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
- RHD: is a mirror image
- Dust and Pollen Filter
- Follow the replacement intervals. Refer to the appropriate Service Information. .
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- RHD: is a mirror image
- Auxiliary Heater Heating Element -Z35-
- Removing and Installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Installed depending on vehicle equipment. Refer to the appropriate Electronic Parts Information.
- On vehicles without an Auxiliary Heater Heating Element -Z35-, the opening in the heater and A/C unit is sealed with a cap. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Right Front Upper Body Vent Temperature Sensor -G386-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- On a vehicle with a "Low" A/C system (or no A/C system) the Right Front Upper Body Vent Temperature Sensor -G386- is not installed. The opening in the air duct is not present or is closed with a plug.
- Removing and Installing. Refer to Right Front Upper Body Vent Temperature Sensor -G386-, REMOVING AND INSTALLING .
- Right Condensation Water Drains
- Check using the Vehicle Diagnostic Tester CONDENSATION WATER DRAIN, CHECKING .
- Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Right Footwell Vent Temperature Sensor -G262-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- On a vehicle with a "Low" A/C system (or no A/C system) the Right Footwell Vent Temperature Sensor -G262- is not installed The opening in the heater and A/C unit is not present or is closed with a plug.
- Removing and Installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
- Left Front Upper Body Vent Temperature Sensor -G385-
- Equipped on some models, only installed on a vehicle with a "Low" A/C system
- On a vehicle with a "High" A/C system no Left Front Upper Body Vent Temperature Sensor -G385- is installed here. The opening in the air duct is closed with a plug.
- Removing and Installing. Refer to Left Front Upper Body Vent Temperature Sensor -G385-, REMOVING AND INSTALLING, "High" A/C SYSTEM .
- On a vehicle with a "High" A/C system the Left Front Upper Body Vent Temperature Sensor -G385- is installed in the air duct to the left instrument panel vent. Refer to -Item 6- COMPONENT LOCATION OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR.
