Special Tools

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Tensioning Strap: T10038

Fig 1: Identifying Tensioning Strap T10038
Courtesy of AUDI OF AMERICA, LLC
Socket - Xzn 14: T10061

Fig 2: Identifying Socket
Courtesy of AUDI OF AMERICA, LLC
Engine Support - Supplement Kit: T40093A

Fig 3: Engine Support - Supplement Kit T40093A
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm: T40263

Fig 4: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Adapter: T40314

Fig 5: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Ring Wrench - 16mm: VAG1332/14

Fig 6: Identifying Ring Spanner Insert AF 16 VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Bracket: VAS6095A

Courtesy of AUDI OF AMERICA, LLC

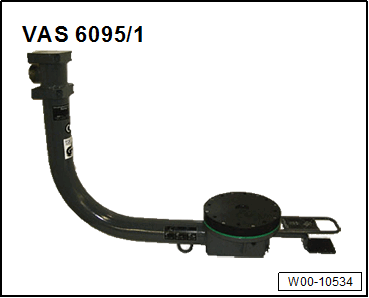

Engine/Transmission Holder - Universal Mounting: VAS6095/1 and V6 TFSI Engine Bracket: VAS6095/1-15

Fig 7: Identifying Universal Mount VAS 6095/1
Courtesy of AUDI OF AMERICA, LLC
Shop Crane: VAS6100

Fig 8: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Lift Arm Extension: VAS6101

Fig 9: Identifying Lift Arm Ext./Workshop Hoist VAS 6101
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set: VAS6122

Fig 10: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table: VAS6131B

Fig 11: Scissor Lift Table (VAS6131B)
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table - Audi Set: VAS6131/10

Fig 12: Identifying Scissor Lift Table - Audi Set VAS 6131/10
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table - A8 Set: VAS6131/11
Scissor Lift Table - Q7 Set: VAS6131/13

Fig 13: Identifying Scissor Lift Table - Q7 Set VAS 6131/13
Courtesy of AUDI OF AMERICA, LLC
Coolant Collecting System: VAS5014 or Shop Crane - Drip Tray: VAS6208

Fig 14: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers: VAS6340

Fig 15: Hose Clip Pliers VAS6340
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers: VAS6362

Fig 16: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Jack: VAS6931

Fig 17: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC
Engine Support Bridge: 10-222A

Fig 18: Engine Support Bridge 10-222A
Courtesy of AUDI OF AMERICA, LLC
Engine Support Bridge - Special Hook (2 pc.): 10-222A/20

Fig 19: Identifying Special Hook (2 pc.)
Courtesy of AUDI OF AMERICA, LLC
Lifting Tackle: 3033

Fig 20: Lifting Tackle (3033)
Courtesy of AUDI OF AMERICA, LLC
Commercially available Step Ladder
