Transmission Support, Removing with Transmission Mount

-- Remove the tunnel crossmember. Refer to the appropriate Service Information .

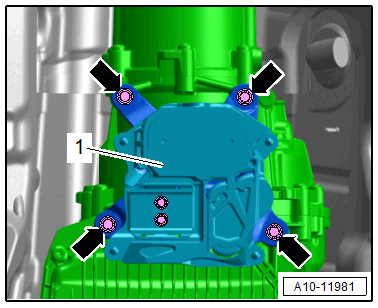

-- Remove the bolts -arrows- and remove the transmission support with the transmission mount -1- from the transmission.

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order of removal.

Tightening Specifications

• Refer to the appropriate Service Information .

Transmission Mount, Removing and Installing

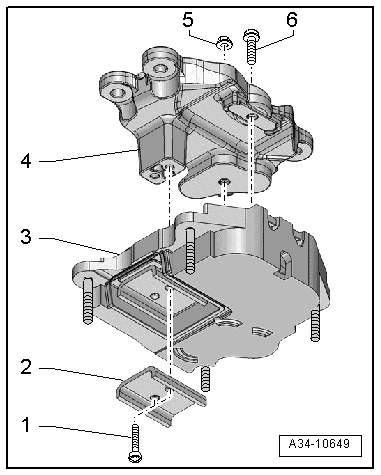

Fig 1: Identifying Bolts, Nut, Transmission Mount And Transmission Support

Courtesy of AUDI OF AMERICA, LLC

-- Remove the transmission support with the rear transmission mount. Refer to Transmission Support, Removing with Transmission Mount .

-- Remove the bolts -1- and remove the stop -2- for the transmission mount.

-- Remove the nut -5- and the bolt -6- and remove the transmission mount -3- from the transmission support -4-.

Installing

Install in reverse order of removal and note the following:

-- Next tighten the nut -5- and bolt -6- hand-tight.

-- Tighten the bolts and nuts in the following sequence: -1, 5 and 6-.

-- Install the transmission support with the rear transmission mount. Refer to Transmission Support, Removing with Transmission Mount .

Tightening Specifications

• Refer to the appropriate Service Information .
