Engine Mount

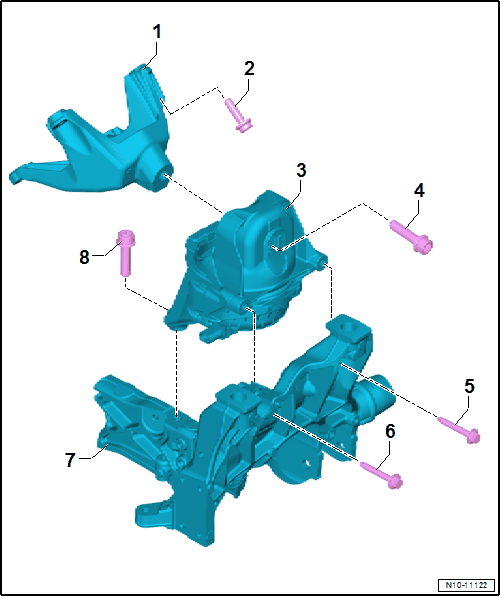

Fig 1: Exploded View Of Engine Mount

Courtesy of AUDI OF AMERICA, LLC

Engine Support
- Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Bolt
- 55 Nm
Engine Mount
- with:
  - Left Electrohydraulic Engine Mount Solenoid Valve -N144-
  - Right Electrohydraulic Engine Mount Solenoid Valve -N145-
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- Replace after removing.
- 90 Nm + 90°
Bolt
- 30 Nm
Bolt
- 30 Nm
Subframe
Bolt
- 55 Nm

Transmission Mount

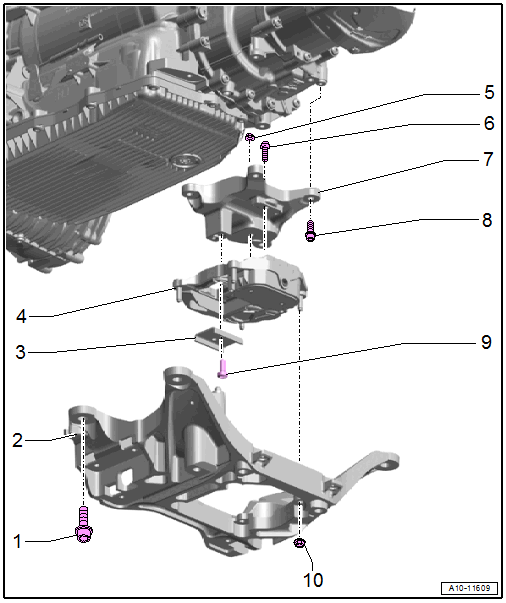

Fig 2: Exploded View Of Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification. Refer to the appropriate Service Information .
Tunnel Crossmember
- Removing and Installing. Refer to the appropriate Service Information .
Stop
- For the rear transmission mount
Rear Transmission Mount
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specification 20 Nm
Bolt
- Replace
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specification: 20 Nm 90°
Transmission Support
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 40 Nm
Bolt
- Replace
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specification: 20 Nm 90°
Nut
- Tightening specification 20 Nm

Support Bearing, Installation Position

Fig 3: Support Bearing, Installation Position

Courtesy of AUDI OF AMERICA, LLC

The raised section -2- of the engine support must engage into the opening -1- on the support bearing.
