Front Water Drain Hoses, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the sunroof shade.

-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Remove the left and right sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING .

-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .

Versions with Driver Assistance Systems Front Camera:

Courtesy of AUDI

-- Unclip the cover -1- using the clip release lever in the direction of -arrows A, B, C- by carefully inserting the clip release lever between the windshield and the cover.

-- Repeat the procedure on the opposite side.

-- Disengage the front of the cover -1- and remove it toward the rear.

Continuation:

-- Remove the left and right A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Driver side: remove the mount for the Vehicle Electrical System Control Module -J519-. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .

-- Front passenger side: remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the left and right front roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

-- Remove the left and right B-pillar upper trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- To avoid dirtying the headliner, clean the Removal Wedge:T40233 .

-- Push the Removal Wedge:T40233 between the frame -1- for the panorama tilting sunroof and the headliner.

Courtesy of AUDI

-- Using the Removal Wedge:T40233 , loosen the headliner at the front of the frame for the panorama tilting sunroof in the direction of -arrows-.

-- Lower the headliner on the corresponding side.

-- Remove the water drain hose from the Panorama tilting sunroof and free it up at the clips and guides.

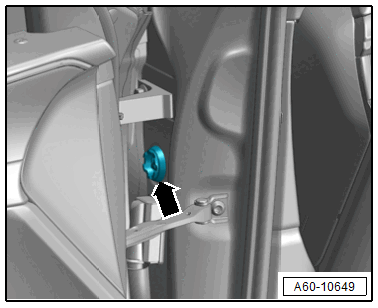

-- For guiding the new water drain hose in later, insert an approximately 500 mm (19.69 in.) long wire through the grommet -arrow- into the water drain hose.

Courtesy of AUDI

-- Loosen the grommet on the A-pillar and remove the water drain hose toward the inside and hold the wire at the same time.
