Front Water Drain Hoses
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

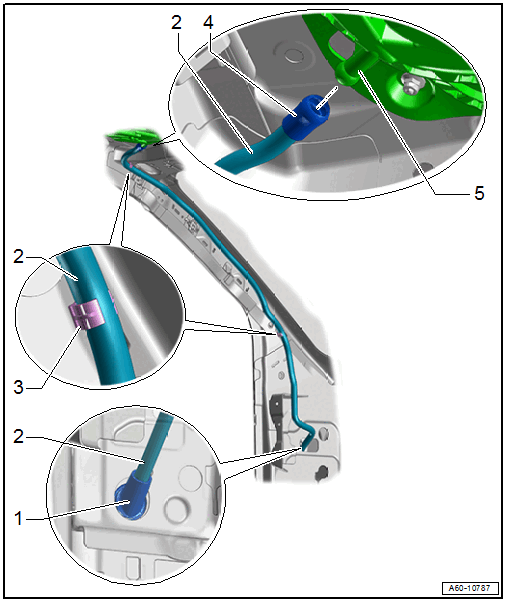

- Grommet
- Push all the way into the body using a soap solution
- Front Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to FRONT WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Clip
- For the water drain hose
- Two or three piece depending on the version
- Coupling Piece
- Attach to the connection
- Connection
- On the sunroof frame
