Sunroof Shade, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

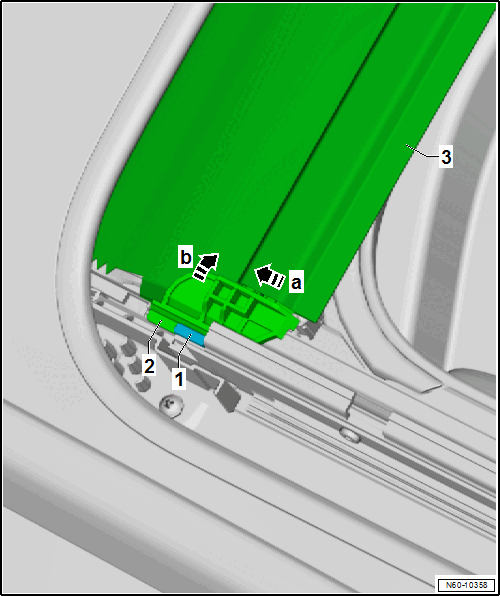

-- Guide the sun shade from above into the frame -arrow a-.

-- Pivot the sun shade into the frame -arrow b-.

Vehicles from 11/2018

-- Pull the sun shade -2- parallel by hand in the guide rails.

All Vehicles

-- Install the sun shade motor. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING .

Vehicles from 12/2018

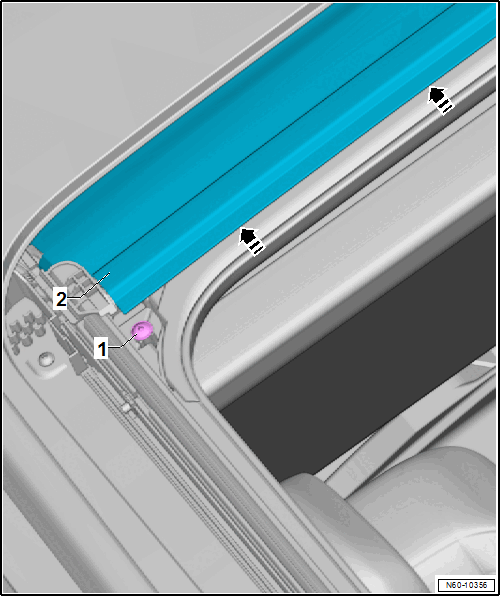

-- Push the shade into the guide rails using a hex wrench.

Courtesy of AUDI

All Vehicles

-- Tighten the left and right bolts -1-.

-- Install the frame. Refer to GLASS PANEL, REMOVING AND INSTALLING .

-- Install the rear glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING .

-- Install the front glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING .

-- Install the headliner. Refer to Roof Trim Panels .

NOTE:

After a sun shade is replaced a basic setting must be performed.

For the basic setting, the pinch protection is deactivated.

The basic setting is performed using the Vehicle Diagnostic Tester.

Component	Tightening Specifications
Sun Shade	6 Nm
