Overview - Sliding Sunroof

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

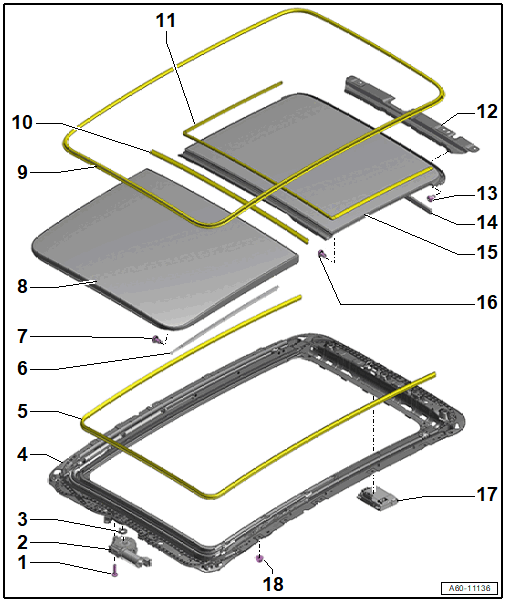

Fig 1: Exploded View Of Sliding Sunroof

Courtesy of AUDI

Bolt
- Quantity: 2
- 3 Nm
Sunroof Motor -V1-
- Removing and Installing. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Clip
Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Seal
- Inner
- Attached from the inside onto the sunroof frame
Rubber Trim
- Equipped on some models
- On the front glass panel
Bolt
- Replace after removing
- Quantity: 6
- 5 Nm
Front Glass Panel
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, FRONT .
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Emergency Opening. Refer to EMERGENCY OPENING .
Seal
- For roof opening
- Replace after removing
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Seal
- For the front glass panel
- Insert in the guide
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Seal
- For the rear glass panel
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Reinforcement Plate
- Equipped on some models
Bolt
- Replace after removing
- Quantity: 4
- 5 Nm
Interior Rear Trim
- Equipped on some models
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR .
Rear Glass Panel
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR .
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Bolt
- Replace after removing
- Quantity: 8
- 5 Nm
Sunroof Control Module -J245-
- Removing and Installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Control Module -J245-, PROGRAMMING .
Nut
- Tightening sequence. Refer to Installing .
- Quantity: 18
- 8 Nm
