Glass Panel, Removing And Installing, Front: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Moving the slotted guide rail guide increases the risk of damaging the sliding sunroof components.
- Move the slotted guide rail guide only when the glass panel is installed.
-- Open the glass panel far enough until it is lifted at the front and rear.

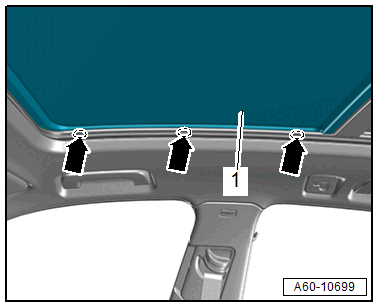

-- Slightly lift the rubber trim side on the glass panel and remove the bolts -arrows- on both sides.
-- Remove the front glass panel -1-.
