Seam Seal, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear door cover. Refer to DOOR COVER, REMOVING AND INSTALLING, REAR .
-- Remove the C-pillar trim. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING .
-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

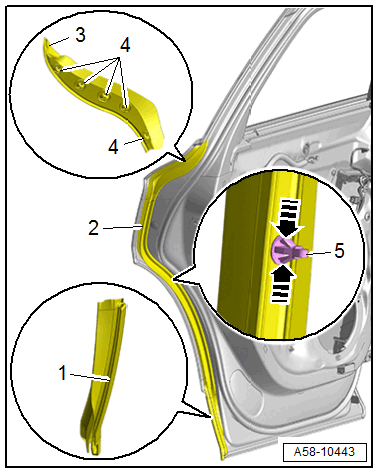

-- Remove the upper seam seal -3- from the door.
-- Remove the retaining studs -4- from the door shell.
-- Release the catches -5- on the seam seal -2- in the direction of -arrows-.
-- Remove the lower seam seal -1- from the door.
-- Remove the seam seal.
