Overview - Door Seals

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

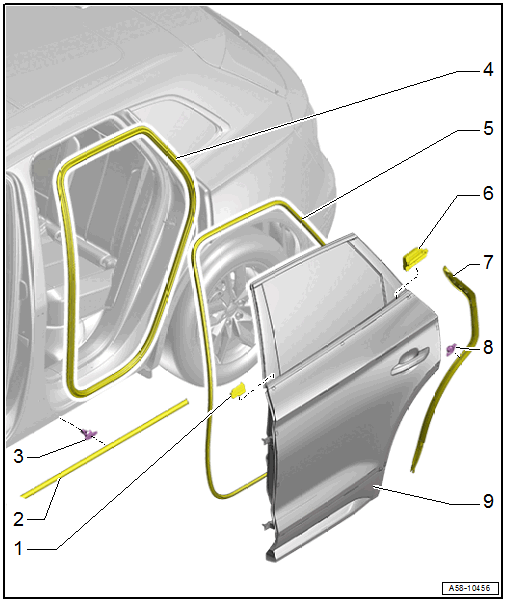

Fig 1: Exploded View Of Rear Door Seals

Courtesy of AUDI

B-Pillar Seal
Side Sill Seal
- Removing and Installing. Refer to SIDE SILL SEAL, REMOVING AND INSTALLING .
Clip
- Replace after removing
Inner Door Seal
- Removing and Installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
Outer Door Seal
- Replace after removing
- With bracket for the outer door seal. Refer to Installing the outer door seal bracket: .
- Removing and Installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
C-Pillar Seal
Gap Seal
- Installed, depending on the version
- Removing and Installing. Refer to SEAM SEAL, REMOVING AND INSTALLING .
Clip
- Installed, depending on the version
- Replace after removing
Door
