Window Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the window frame trim panel. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
-- Remove the B-pillar trim. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, REAR .
-- Remove the C-pillar trim. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING .

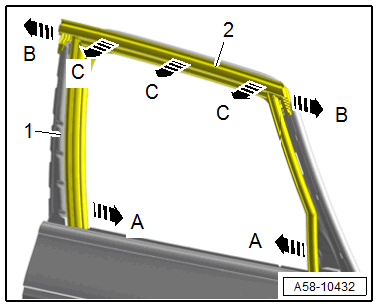

-- Pull the window guide -2- out of the guide rails in the direction of -A arrows-.
-- Remove the window guide corners in the direction of -B arrows-.
-- Starting at the front, pull the window guide out of the guide, working outward from the door flange -1- in the direction of -C arrows-.
