Window Guide, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

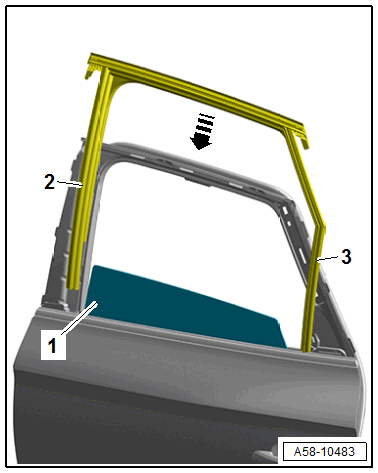

-- Move the door window -1- into the position "half open".
For an easier installation, spray the window guides with soapy water, for example.
-- Insert the window guides -2 and 3- in the guide rail in the direction of -arrow-.

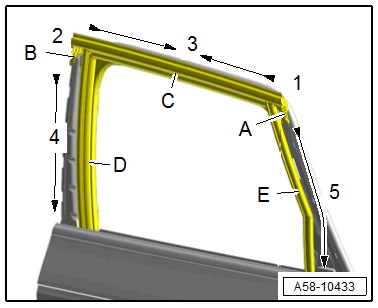

-- Install the window guide on the door flange in the sequence -1 through 5-.
| Step | |
|---|---|
| 1. | -- Position the upper window guide corner -A- on the C-pillar door flange and align it with the C-pillar trim by installing the C-pillar trim without using screws. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING . |
| 2. | -- Position the upper window guide corner -B- on the B-pillar door flange and align it with the B-pillar trim by installing the B-pillar trim without using screws. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, REAR . |
| 3. | -- Push on the upper window guide -C-, working from the outside toward the inside. |
| 4. | -- Insert the window guide -D- completely in the B-pillar guide rail. |
| 5. | -- Insert the window guide -E- completely in the C-pillar guide rail. |
