Mounting Bracket, Removing And Installing: Removing
-- Move the door window into the "closed" position.
-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .
-- Remove the housing. Refer to HOUSING, REMOVING AND INSTALLING .
-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
-- Remove the backing plates -1 and 2-.
-- Remove the bolt -arrow-.
-- Lift the mounting brackets -1- until the retainers -2 and 3- are free in the direction of -arrows-.
-- Free up the wiring harness.
-- Remove the mounting bracket toward the inside.
Risk of damaging the operating cable by deforming it.
- Never sharply bend or kink the operating cable.

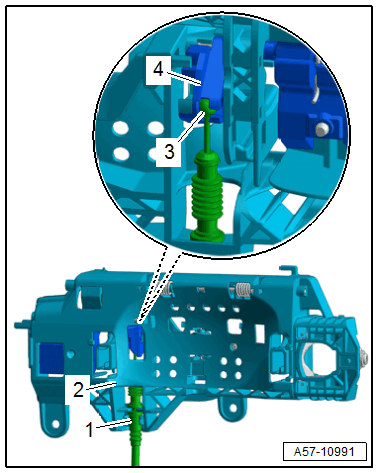

-- Loosen the operating cable -1- from the support bracket -2- and disengage the release cable nipple -3- from the release lever -4-.
-- Remove the mounting bracket from the door.
