Undamaged Side Window, Removing, SPORTBACK

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Pay attention to the repair information. Refer to REPAIR INFORMATION .

Removing

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- In the window cutting area, protect the side panel and roof against paint damage with adhesive tape -arrow-.

Courtesy of AUDI

CAUTION:

Risk of injury to the hands and eyes from glass fragments.

Getting cut is possible.

- Wear protective eyewear.

- Wear safety gloves.

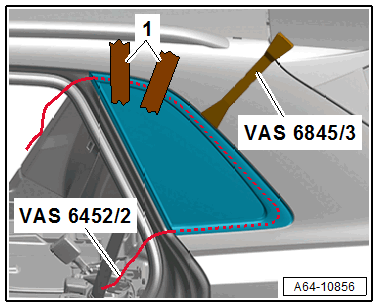

-- Using the scraper no. 3 from the Scraper Set:VAS6845 push the Cutting Tool for Bonded Windows - Wire:VAS6452/2 all around the side window under the seal.

Courtesy of AUDI

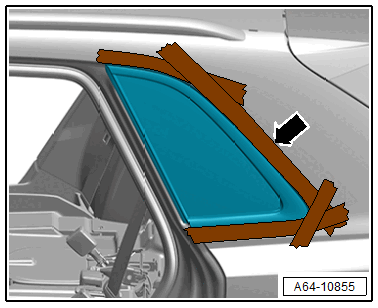

-- Secure the upper side window using adhesive tape -1-.

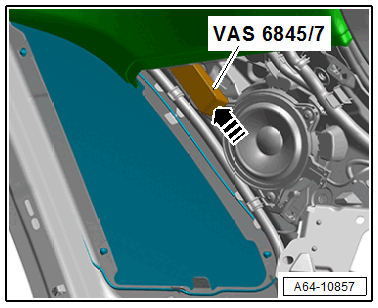

-- Push the universal wedge no. 7 from the Scraper Set:VAS 6845 in the area of the rear side window under the headliner.

Courtesy of AUDI

The headliner must be slightly removed from the rear side window.

-- With a sawing motion, remove the Cutting Tool for Bonded Windows - Wire:VAS6452/2 toward the front and cut through the adhesive bead at the same time cut through the locating pin on the side window.

Courtesy of AUDI

-- Remove the side window from the window opening.
