Undamaged Left Side Window, Removing, Security

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Pay attention to the repair information. Refer to REPAIR INFORMATION .

Removing

-- In the window glass cutting area, protect the side panel and roof against paint damage with adhesive tape.

CAUTION:

Risk of injury to the hands and eyes from glass fragments.

Getting cut is possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Place the Window Removal Set - Cutting Cord:VAS 861 001/1A all around under the side window seal and secure on the end on the door striker.

TIP:

Slightly lift the molding using the Wedge Set:T10383/1 .

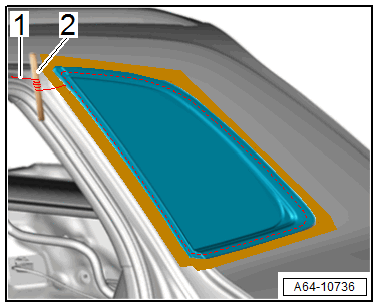

-- Wrap the Bonded Window Tool Kit - Pull Handle:VAS 861 001/1A -1- multiple times around for example the Brake Charger/Bleeder Unit - Adapter:V.A.G 1351/1 , -2-.

Courtesy of AUDI

-- Cut free the top of the side window.

-- Secure the upper side window using adhesive tape.

-- Completely cut free the top of the side window.

-- Remove the side window from the side window frame.
