Overview - Rear Side Window
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

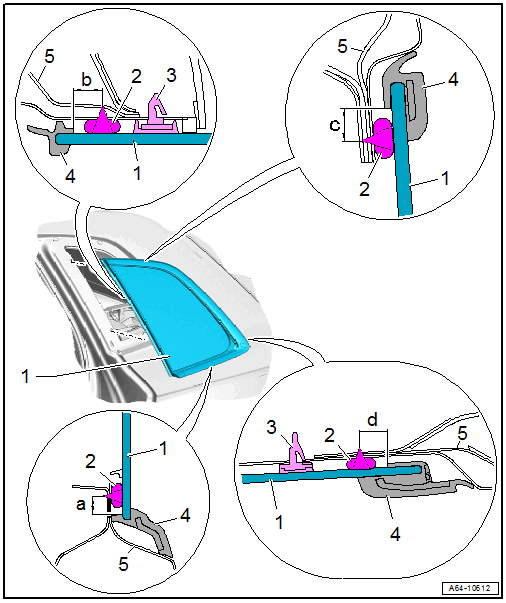

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- After installing push in first with the retainers -item 3-.
- Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
- Dimension -a- = 7.9 mm
- Dimension -b- = 7.7 mm
- Dimension -c- = 7.8 mm
- Dimension -d- = 7.9 mm
- Adhesive bead thickness. Refer to Adhesive application: .
- Locating Pin
- No replacement part
- Is cut through when removing the window
- Molding
- On the side window frame
- Must not be damaged in the visible area
- Body
