Undamaged Rear Window, Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Pay attention to the repair information. Refer to REPAIR INFORMATION .
Required Tools and Materials for Removal and Installation. Refer to REQUIRED TOOLS AND MATERIALS FOR REMOVAL AND INSTALLATION .

-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear window wiper motor with the grommet. Refer to REAR WINDOW WIPER MOTOR -V12-, REMOVING AND INSTALLING .

-- Remove the spoiler. Refer to SPOILER, REMOVING AND INSTALLING .

-- Remove the side spoiler. Refer to SIDE SPOILER, REMOVING AND INSTALLING .

-- Disconnect the connectors and secure to the window glass using adhesive tape -arrows-.

Courtesy of AUDI

CAUTION:

Risk of injury to the hands and eyes from glass fragments.

Getting cut is possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Insert the Window Removal Set - Cutting Cord:VAS 861 001/1A in the piercing awl -1-.

Courtesy of AUDI

TIP:

To prevent any damage, cover the area where the piercing awl comes out at the rear lid with adhesive tape.

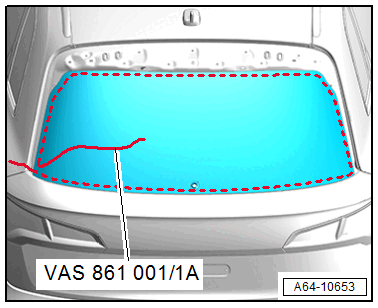

-- Push the piercing awl at the lower left side of the rear window from the inside outward through the adhesive bead in the direction of -arrow- and pull the cutting cord outward.

-- Place the Window Removal Set - Cutting Cord:VAS 861 001/1A all around under the rear window.

Courtesy of AUDI

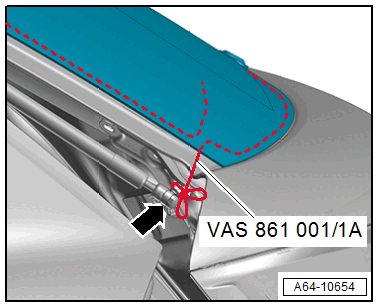

-- Secure the other end of the Window Removal Set - Cutting Cord:VAS 861 001/1A on the mount for the gas-filled strut -arrow- or on the rear lid unlock motor.

Courtesy of AUDI

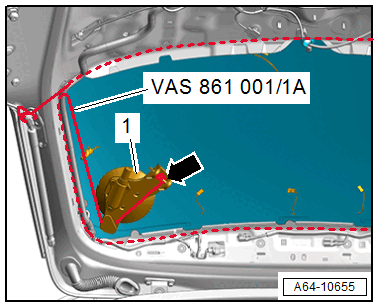

-- Secure the removal device -1- on the upper left of the inside of the window.

Courtesy of AUDI

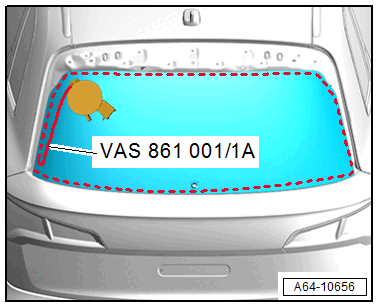

-- Insert the Window Removal Set - Cutting Cord:VAS 861 001/1A in the reel device -arrow-.

-- Tension the cutting cord with the reel device.

-- Cut free in the left area of the rear window.

Courtesy of AUDI

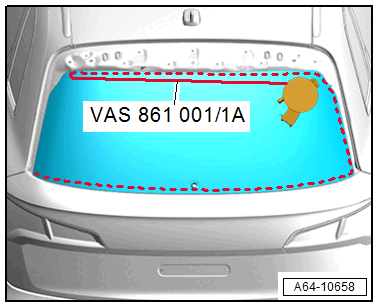

-- Offset the removal device -2- to the right upper edge of the rear window.

Courtesy of AUDI

-- Push in the cut out protection -1- from the Window Removal Set:VAS 861 001A to the guide of the Window Removal Set - Cutting Cord:VAS 861 001/1A between the window frame and the rear window.

-- Cut free in the upper area of the rear window.

Courtesy of AUDI

-- Offset the removal device -1- to the right lower edge of the rear window.

Courtesy of AUDI

-- Cut free in the right area of the rear window.

Courtesy of AUDI

-- Guide the cutting cord from of the removal device under the right locating pin -arrow-.

Courtesy of AUDI

-- Offset the removal device -1- to the left lower edge of the rear window.

Courtesy of AUDI

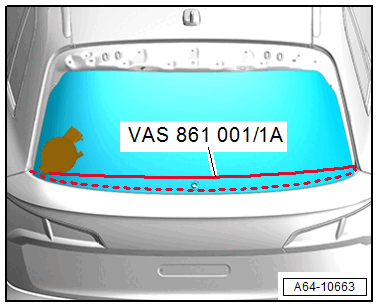

-- Insert the Window Removal Set - Cutting Cord:VAS 861 001/1A in the reel device.

-- Tension the cutting cord with the reel device.

-- Push in the cut out protection -2- from the Window Removal Set:VAS 861 001A to the guide of the Window Removal Set - Cutting Cord:VAS 861 001/1A between the window frame and the rear window.

-- Cut free in the lower area of the rear window.

Courtesy of AUDI

-- To not damage the left locating pins, guide out the cutting cord from the removal device again if necessary and guide under the locating pins.

-- Lift the rear window with two suction lifters from the window opening.
