Window Guide, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT .

-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

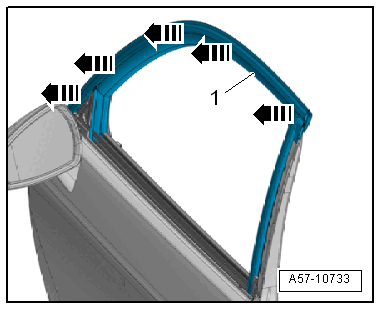

-- Remove the window guide -1- outward from the door frame in the direction of -arrows-.

GWWA57-10733Courtesy of AUDI
