Window Guide, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

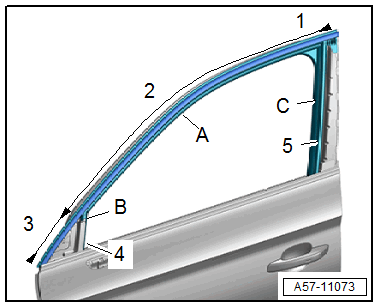

-- Install the window guide -A- on the door flange in the sequence -1 through 5-.
| Step | |
|---|---|
| 1. | -- Position the upper edge of the window guide on the B-pillar door flange and push it forward in the direction of travel. |
| 2. | -- Install the window guide on the door flange. |
| 3. | -- Align the window guide on the A-pillar guide rail. |
| 4. | -- Insert the seal -B- into the guide rail. |
| 5. | -- Install the B-pillar trim (refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT ) and insert the seal -C- into the guide rail. |
