Outer Window Shaft Strip, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the door window into the "open" position.
-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

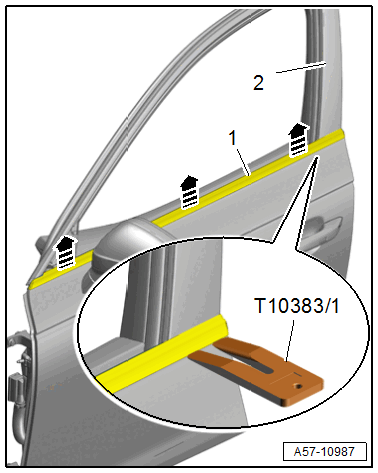

-- Using the Wedge Set :T10383/1 , carefully remove the window shaft strip -1- at the B-pillar trim -2- upward from the door flange in the direction of -arrows-.
-- Remove the window shaft strip.
