Outer Window Shaft Strip, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
TIP:
The lower edge of the window shaft strip can be coated with tire mounting paste for installation.

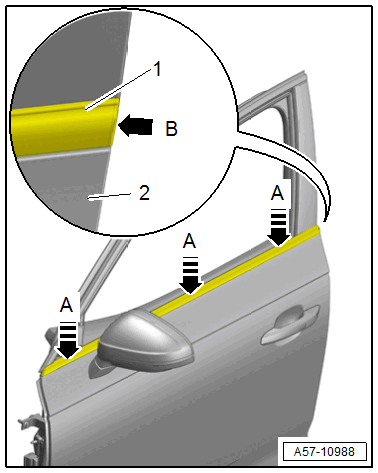

-- Align the window shaft strip -1- flush to the door body -2- -arrow B- and attach it on the door flange all the way to the A-pillar in the direction of -A arrows-.
Further installation is performed in reverse order of the removal.
