Mounting Bracket, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Move the door window into the "closed" position.

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Driver side: remove the lock cylinder. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .

-- Front passenger side: remove the housing. Refer to HOUSING, REMOVING AND INSTALLING .

-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

CAUTION:

Risk of damaging the operating cable by deforming it.

- Never sharply bend or kink the operating cable.

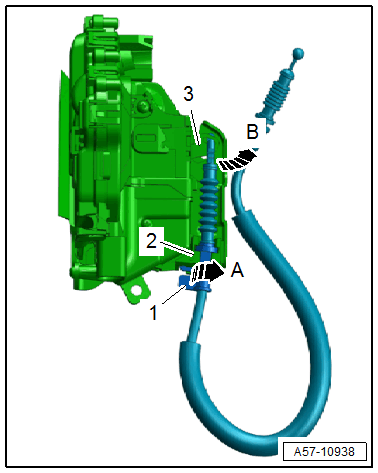

-- Turn the operating cable on the lever -1- 90° in the direction of -arrow A- and remove it from the cable bracket -2-.

Fig 1: Rotating Operating Cable On Door Lock Release Lever

Courtesy of AUDI

-- Rotate the operating cable on the door lock release lever -3- in the direction of -arrow B-.

The operating cable must be aligned with the opening on the release lever.

-- Disengage the operating cable from the release lever.

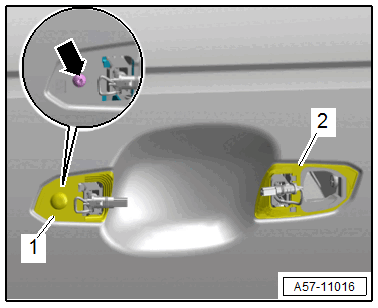

-- Remove the backing plate -1 and 2-.

Courtesy of AUDI

-- Remove the bolt -arrow-.

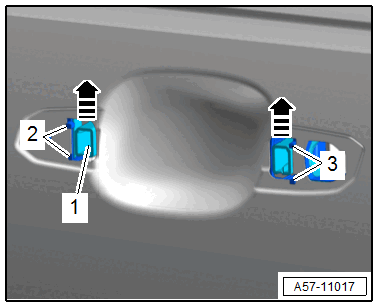

-- Lift the mounting brackets -1- until the retainers -2 and 3- are free in the direction of -arrows-.

Courtesy of AUDI

-- Free up the wiring harness.

-- Remove the mounting bracket toward the inside and remove it from the door.
