Mounting Bracket, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

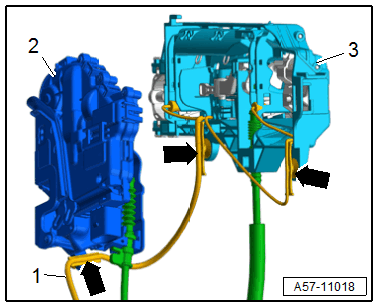

-- Equipped on some models: install the wiring harness -1- for the exterior door handle touch sensor/exterior door handle illumination on the mounting bracket -3- and on the door lock -2-. Pay attention to the wire routing -arrows-.
TIP:
If the wiring harness is not routed correctly, there may be noises when opening and closing the door window, because the door window grazes the wiring harness.
Tightening Specifications
- Refer to OVERVIEW - DOOR HANDLE AND DOOR LOCK
