Lock Cylinder, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the door handle trim. Refer to DOOR HANDLE TRIM, REMOVING AND INSTALLING .

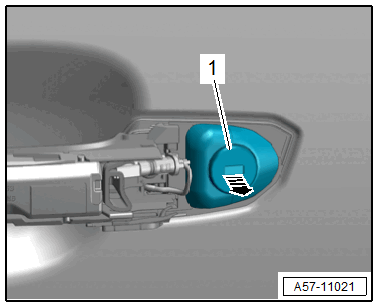

-- Remove the lock cylinder -1- from the mounting bracket in the direction of -arrow-.
TIP:
If the lock cylinder cannot be removed, push the ignition key in the lock cylinder and remove the lock cylinder with the key slightly turned.
