Inner Window Shaft Strip, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front window frame trim panel. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .

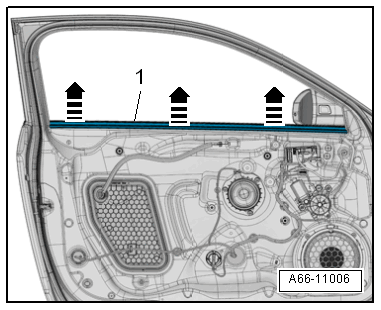

-- Remove the window shaft strip -1- upward in the direction of -arrows-.

GWWA66-11006Courtesy of AUDI
