Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Relay and Fuse Panel 2 -SR2-. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .

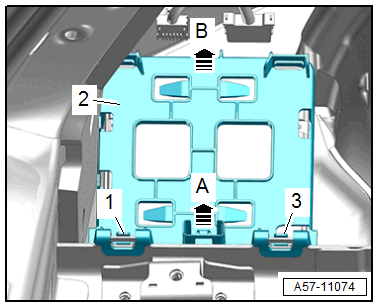

-- Release the catches -1 and 3-.
-- Pull the bracket -2- for the central control module slightly upward in the direction of -arrow A- and at the same time remove on the outside from the threaded pin upward in the direction of -arrow B-.
-- Remove the bracket for the central control module.

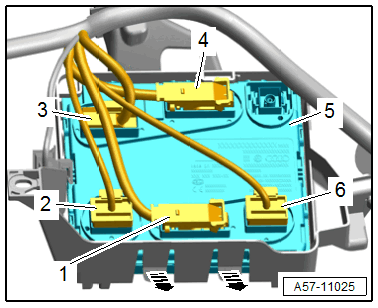

-- Disconnect the connectors -1, 2, 3, 4 and 6-.
-- Release the retainers in the direction of -arrows- and guide the central control module -5- out of the mount.
