Right Drive Axle Cover, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

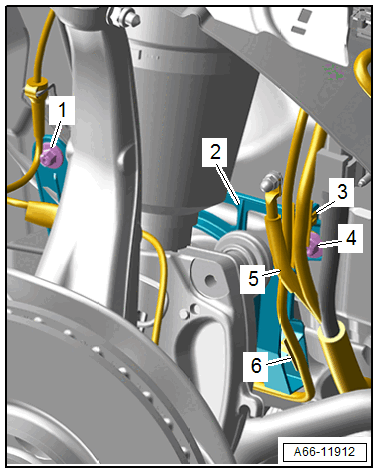

-- Push the front wheel to the right.
-- Free up the wiring harness -3-.
-- Remove the nut -4-.
-- Free up the wiring harness -6-.
-- Push the front wheel to the left.
-- Remove the nut -1-.
-- Remove the drive axle cover -2- from the threaded pin and remove rearward and downward, to do so push the ground wire -5- slightly to the side.
