Left Drive Axle Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Push the front wheel to the left.

-- Remove the nut -2-.

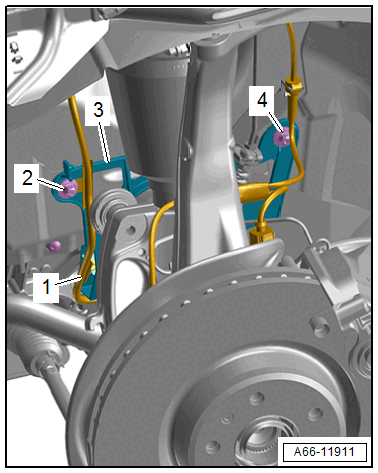

GWWA66-11911Courtesy of AUDI

-- Free up the wiring harness -1-.

-- Push the front wheel to the right.

-- Remove the nut -4-.

-- Pull the drive axle cover -3- off the threaded pins and remove it downward toward the rear.
