Rear Impact Guard, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the cover for the rear tunnel brace. Refer to TUNNEL BRACE COVER, REMOVING AND INSTALLING .
-- Left: remove the nuts -2- and bolts -1-.
-- Push the underbody trim panel -4- to the side.
-- Remove the rear underbody trim panel. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

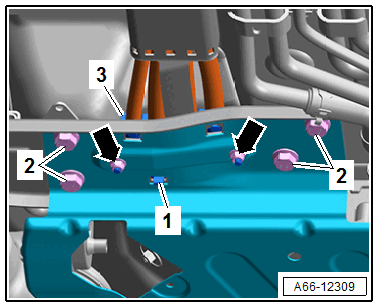

-- Remove the nuts -arrows- and the bolts -2-.
-- Release the catch -1- and disengage the cable holder -3-.

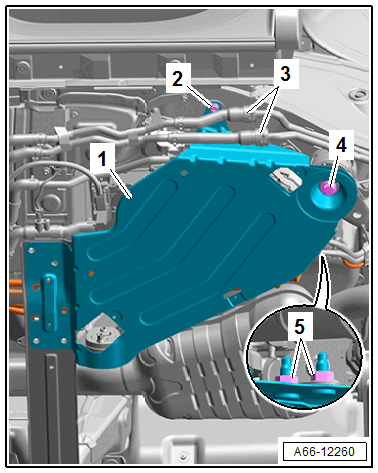

-- Remove the bolts -2 and 4-.
-- Remove the nuts -5-.
-- Remove the impact guard -1- at the same time guide out the coolant lines -3-.
-- Support with Engine and Gearbox Jack:VAS 6931 and universal mounting plate from the Electric Drive Power and Control Electronics -JX1-.
