Center Underbody Trim Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the cover for the rear tunnel brace. Refer to TUNNEL BRACE COVER, REMOVING AND INSTALLING .
-- If installed, remove the underbody trim panel tunnel. Refer to UNDERBODY TRIM PANEL TUNNEL, REMOVING AND INSTALLING .

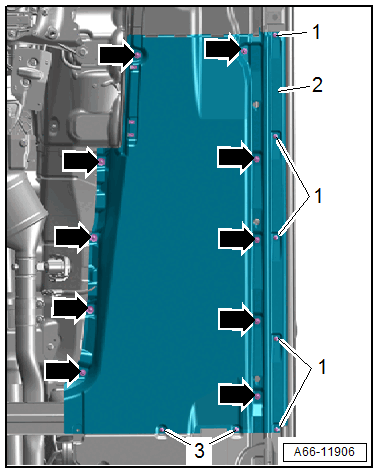

-- Remove the nuts -arrows- and bolts -3-.
-- Remove the bolts -1- and remove the expanding clip.
-- Remove the underbody trim panel -2-.
