Towing Recognition Control Module -J345-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Open the cover for the left luggage compartment side trim panel.
-- If equipped, remove the Digital Sound System Control Module -J525- with the bracket. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .

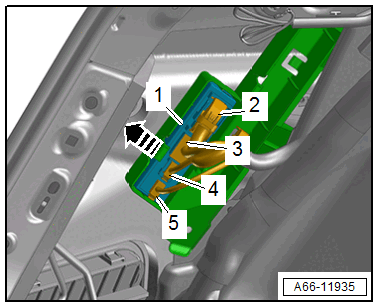

-- Disconnect the connectors -2 to 5-.
-- Release the retainer in the direction of -arrow- and remove the towing recognition control module -1- from the frame.
