Spoiler, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

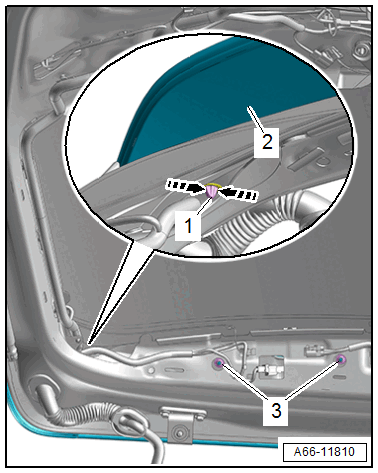

-- Disconnect the connectors -1 and 3-.
-- Free up the cable grommets -2- by releasing the retainers in the direction of -arrows-.
-- Remove the nuts -3-.
-- Release the clip -1- with needle nose pliers in the direction of -arrows-.
-- Close the rear lid.
-- Press the spoiler -2- off of the rear lid using the Wedge Set:T10383/1 and remove it.
-- If the spoiler is to be replaced, also remove the following components:
- High-mounted brake lamp. Refer to HIGH-MOUNTED BRAKE LAMP, REMOVING AND INSTALLING .
