Roof Railing, Removing And Installing, Security: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the head curtain airbag with igniter -1- on the B-pillar from the body. The head curtain airbag remains installed. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

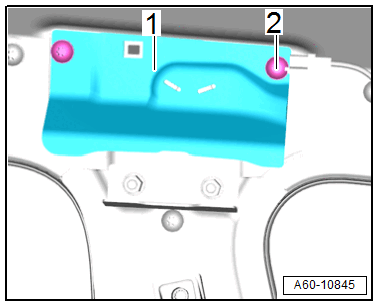

-- Remove the bolts -2- and remove the cover protecting plate for the roof rack recognition sensor -1-.
-- Disconnect the connector -2-.
-- Remove the nuts -arrows- using the Body Socket:T40078 .
-- Remove the roof railing upward.
