Wheel Housing Extension, Removing And Installing, Front: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Pry out the clamps -3- and remove the wheel housing extension -2- from the wheel arch trim -1- to do so press on the area of the clamps on the wheel housing extension in the direction of -arrow-.

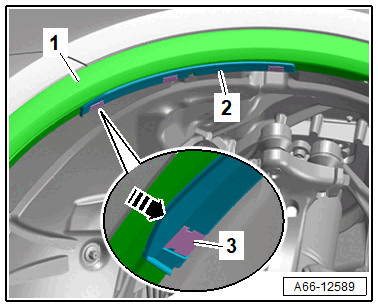

GWWA66-12589Courtesy of AUDI
