Wheel Cover, Removing And Installing, Rear: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the rear wheel housing liner from the retainer in the bumper cover area. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

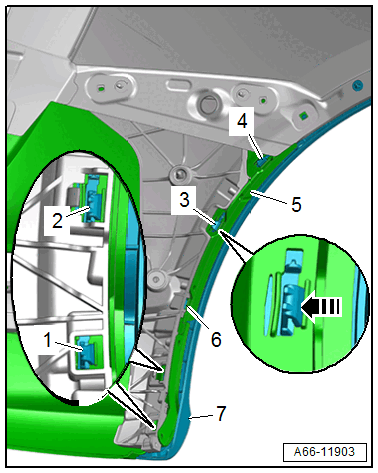

-- Release the catches -1, 2, 3, 4 and 6- using a flat-head screwdriver in the direction of -arrow- and remove the wheel arch trim -7- from the bumper cover -5-.
-- Release the wheel arch trim -1- with the Wedge Set:T10383/1 from the side panel -2- and remove.
