Sill Panel Trim, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- The vehicle and the trim must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Remove the adhesive residue from the body.
-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04 and let dry.
-- Vehicles without cut-outs for pins in the side sill: remove the pins on the sill panel trim.

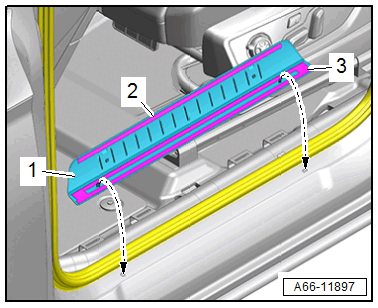

-- Remove the protective film from the adhesive tape -2 and 3-.
-- Position the sill panel trim -1- over the pins on the side sill -arrows-.
-- Vehicles without cut-outs for the pin in the side sill: position the sill panel trim on the identification. If necessary, reference to the position on the opposite side.
-- Push the sill panel trim onto the side sill using the Roller:3356 .
- Resting time approximately 30 minutes at room temperature
Further installation is performed in reverse order of the removal.
