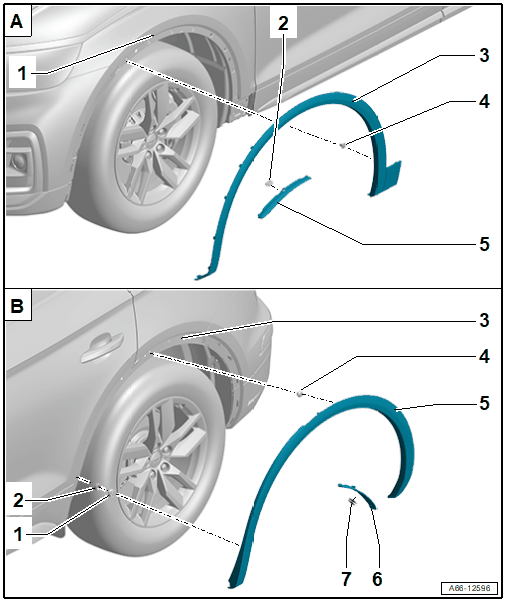

Overview - Wheel Arch Trims
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- A - Front Wheel Arch Trim
- 1 - Fender
- 2 -
Clip
- Quantity: 3
- 3 -
Wheel Cover
- Removing and Installing. Refer to WHEEL COVER, REMOVING AND INSTALLING, FRONT .
- 4 -
Clip
- With grommet
- Quantity: 11
- Replace the wheel cover after removal
- 5 -
Wheel Housing Extension
- Equipped on some models
- Removing and Installing. Refer to WHEEL HOUSING EXTENSION, REMOVING AND INSTALLING, FRONT .
- B - Rear Wheel Arch Trim
- 1 -
Grommet
- Quantity: 2
- 2 -
Clip
- Quantity: 2
- 3 - Side Panel
- 4 -
Clip
- Quantity: 6
- Replace the wheel cover after removal
- 5 -
Wheel Cover
- Removing and Installing. Refer to WHEEL COVER, REMOVING AND INSTALLING, REAR .
- 6 -
Wheel Housing Extension
- Equipped on some models
- Removing and Installing. Refer to WHEEL HOUSING EXTENSION, REMOVING AND INSTALLING, REAR .
- 7 -
Clip
- Quantity: 3
