Overview - Trim Molding
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

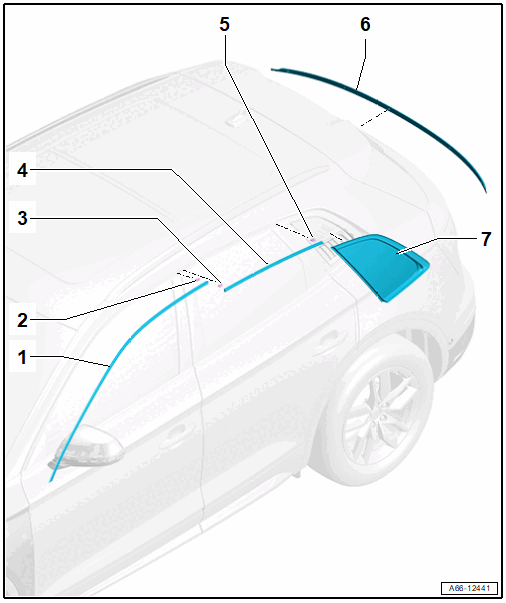

- Front Door Trim Molding
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING, FRONT DOOR .
- Clip
- With "front door" label
- Clip
- With "rear door" label
- Rear Door Trim Molding
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING, REAR DOOR .
- Clip
- With "rear door" label
- Trim Molding
- Center
- From Product Improvement
- Replace after removing
- To remove, warm up carefully with the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A .
- Side Window Trim Molding
- Component of the side window. Cannot be replaced separately if damaged.
- Side Window, Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
