Rear Muffler Heat Shield, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the rear muffler mounting and lower it slightly using the Engine and Gearbox Jack:VAS 6931 . Refer to OVERVIEW - MUFFLER - 2.0L DMSA , OVERVIEW - MUFFLER - 2.0L DPVA , OVERVIEW - MUFFLER - 3.0L .

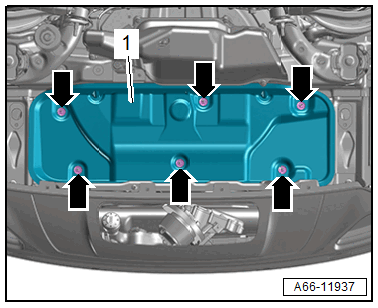

-- Remove the nuts -arrows-.
-- Remove the heat shield -1-.
